Shenli 25T/35T heavy axle
Shenli 25T/35T heavy axle

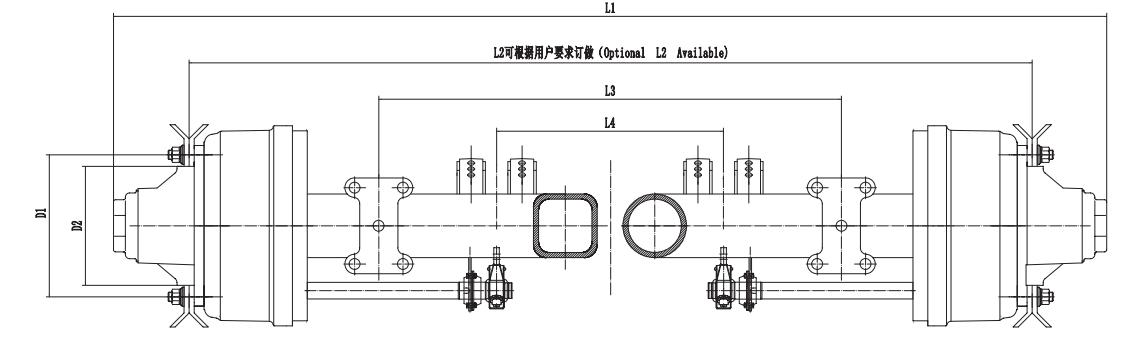

车轴型号Axle Type
|
额定负荷MaxCapacity (T) |
轮距SP (含 钢圈） Track (mm)L2 |
制动器规格Brake Size(mm) | 板簧座中心距Center Distance Of Spring SeatL3(mm) |
轴管规格（含厚度) Axle Tube(mm) | 气室间距GM CenterDistance of BrakeChamberL4 (mm) | 轮毂轮辋连接Wheel Fixing |
最大外形长度totalLengthL1 (mm) |
推荐使用钢圈Wheel Rim is recom-mended to use |
车轴重量Weight(Kgs) |
轴承Bearing | ||
轮毂螺栓Studs | 分布圆D1 (mm) P.C.D | 中心孔直径 D2(mm)HoleDiameter | |||||||||||
SLD25FB05A4II
| 25 | 1850 | Φ420×180
| ≥940 | 150×150×22 | 360 | 10-M22×1.5 ISO
| 335 | 281 | 2230 | 8.0v-20
| 475 |
外轴承 32222/10 内轴承 32222/10
|
SLD35FB05A5II
| 35 | 1850 | Φ420×245
| ≥940 | 150×150×22 | 340 | 10-M22×1.5 ISO
| 335 | 281 | 2230 | 8.0v-20
| 498
| |
